PACKING MACHINE

ZY-PZ 280 Flow Packing Machine

ZY-PZ 280 Flow Packing Machine suitable packing medium and large size packing of various solid and regular materials.
Model: ZY-PZ280

Upper Feeding, Three Servos,Reciprocating,Special for small packaging bags

  • Packing Speed: 25-120bags/min
  • Film Width: 200-600mm
  • Package Length: 120-500mm
  • Package Width: <200mm
  • Product Height: 80-110mm

NOTE: The above is the standard model.

Request A Quote Now

SEND EMAIL: groupsuny@gmail.com

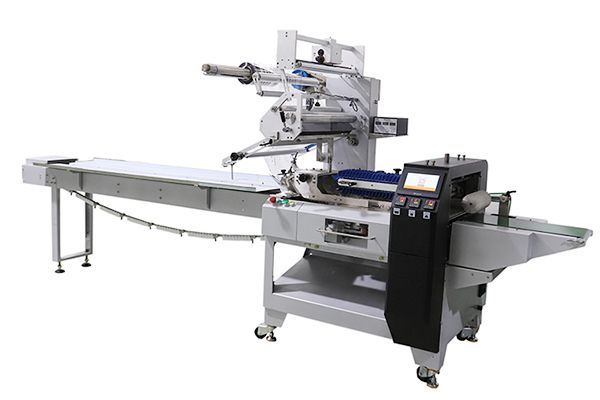

PHOTOS OF ZY-PZ280 AUTOMATIC WRAPPING MACHINE

 This model flow wrap machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.

ZY-PZ 280 PACKING MACHINE
  • The whole machine is controlled by three servos.
  • The machine packing range is large ,suitable packing all kinds of large specification,large size products.
  • Can store a variety of product parameters and formulations,do not need set separately, download can be used.
  • Automatically adjust the bag length without manual setting.
  • The machine has higher precision ,sealing and cutting position is accurate.
  • Stop Position ,coding position can be set in the touch screen,click,convenient and fast.
  • Simple mechanical structure ,convenient debugging and intuitive,low after -sales maintenance cost.
MORE DETAILS
APPLICATION

Mainly used for packing various regular andsolid products such as biscuit, moon-cake,bread, instant noodle, confectionery, medicine,daily necessities, hardware, electronics, andany product with tray.

SYSTEM COMPOSITION

The packaging machine is composed of conveying device, feeding rack, bag forming device, sealing knife, etc. The whole process is completed automatically without manual participation, and the production speed can reach more than 120 bags/min.

Conveyor Device
ZY-PZ100 Upper Feeding System
Upper Feeding System
ZY-PZ100 Color Code Scanning Device
Color Code Scanning Device
Lengthway Sealing
ZY-PZ100 Horizontal Sealing
Horizontal Sealing
ZY-PZ100 Delivery Machianism
Delivery Machianism
ZY-PZ100 Start Up Button
Start Up Button
ZY-PZ100 Membrane Change Handle
Membrane Change Handle
TECHNICAL PARAMETERS
Model Single Knife
Packing Speed 25-120 Bags/Min
Film Width 200-600mm
Bag Length 120-500mm
Bag Width 200mmmm
Bag Height 80-110mm
Power 3.1 Kw 220V 50Hz
Weight 550 Kg
Dimension L4260×W1130×H1400mm
Film Material OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP etc.

NOTE: Voltage can be customized according to customer need.

TELL US WHAT YOU NEED TO PACK

We will recommend the most suitable model for you. If the existing model cannot meet the requirements, we will provide you with professional solutions.
