FLOW WRAPPING MACHINE
Flow Wrapping Machine
Flow wrapping is becoming an important technique for packaging various products with any type of foils and film. These machines are used to package vegetables, fruits, bakery, candy, and confectionery items, as well as industrial products like hardware.
Upper Feeding, Three Servos, Special for small packaging bags
Upper Feeding, Three Servos, Special for small packaging bags,Upper Feeding, Three Servos, Special for small packaging bags
TECHNICAL PARAMETERS:
| Model | Single Knife | Double Knives | Three Knives |
|---|---|---|---|
| Film Width | 90-220mm | ||
| Bag Length | 120-300mm | 60-200mm | 45-120mm |
| Bag Width | 35-80mm | 35-80mm | 35-70mm |
| Bag Height | 5-35mm | 5-35mm | 5-30mm |
Upper Feeding, Three Servos, Available in a variety of package sizes
Upper Feeding, Three Servos, Special for small packaging bags,Upper Feeding, Three Servos, Special for small packaging bags
TECHNICAL PARAMETERS:
| Model | Single Knife | Double Knives | Three Knives |
|---|---|---|---|
| Film Width | 90-400mm | ||
| Bag Length | 60-500mm | 60-350mm | 45-100mm |
| Bag Width | 35-160mm | 35-160mm | 35-60mm |
| Bag Height | 5-60mm | 5-60mm | 5-30mm |

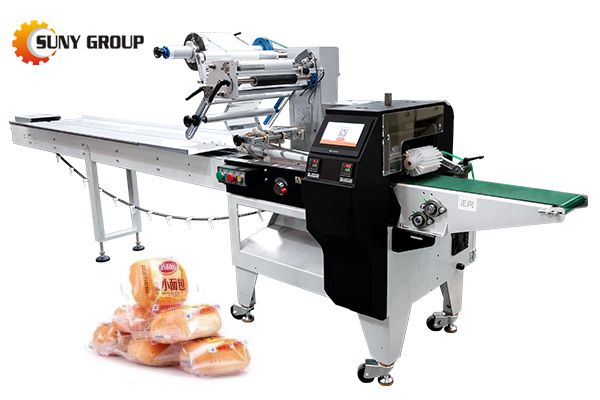

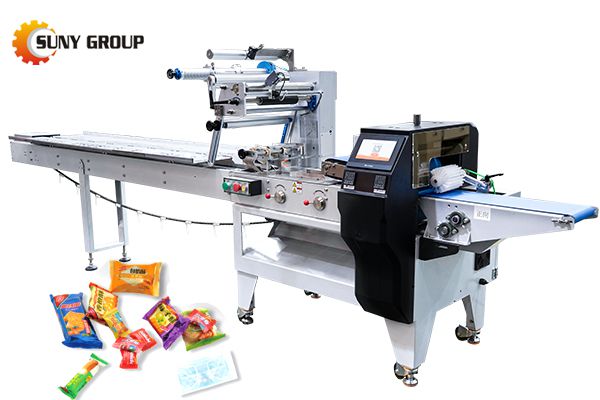

ZY-PZ180L Flow Wrapping Machine
Upper Feeding, Three Servos, Special for medium bag packaging.
TECHNICAL PARAMETERS:
| Model | ZY-180L | ||
|---|---|---|---|
| Packing Speed | 30-150 Bags/Min | ||
| Film Width | 90-400mm | ||
| Bag Length | 120-500mm | ||
| Bag Width | 35-200mm | ||
| Bag Height | 5-60mm | ||

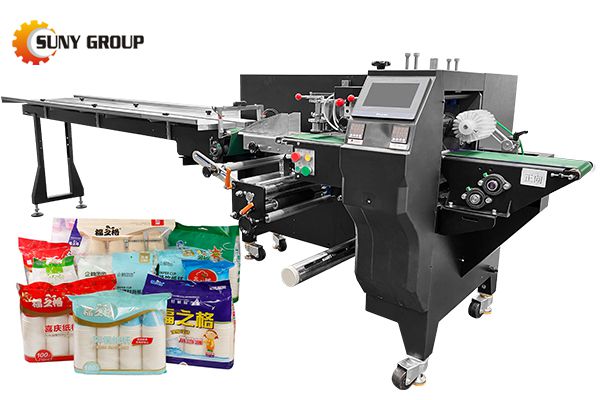

ZY-PZ1000PLUS Flow Wrapping Machine
Bottom Feeding, Three Servos, Special for irregularor bulky products packaging.
TECHNICAL PARAMETERS:
| Model | ZY-PZ1000Plus |
|---|---|
| Packing Speed | 30-120 |
| Film Width | 90-400mm |
| Bag Length (Flat Bag) | 100-500mm |
| Bag Width | 35-140mm |
| Bag Height | 5-60mm |

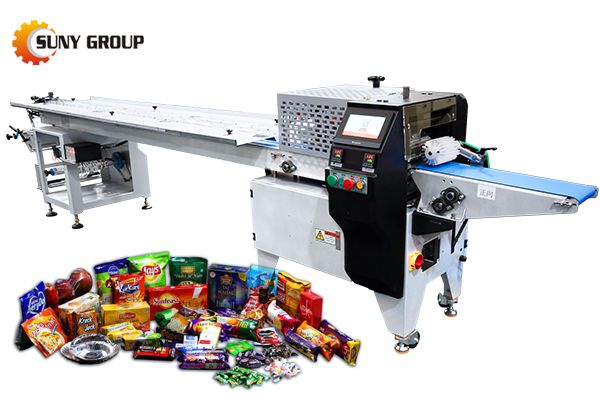

ZY-PZ3000 Flow Wrapping Machine
Bottom Feeding, Three Servos, Special for for packing various kinds of irregular or sticky products.
TECHNICAL PARAMETERS:
| Model | Single Knife | Double Knives | Three Knives |
|---|---|---|---|
| Packing Speed | 35-160 Bags/Min | 35-250 Bags/Min | 35-450 Bags/Min |
| Film Width | 90-400mm | ||
| Bag Length | 60-500mm | 60-300mm | 45-100mm |
| Bag Width | 35-160mm | 35-160mm | 35-60mm |
| Bag Height | 5-60mm | 5-60mm | 5-30mm |

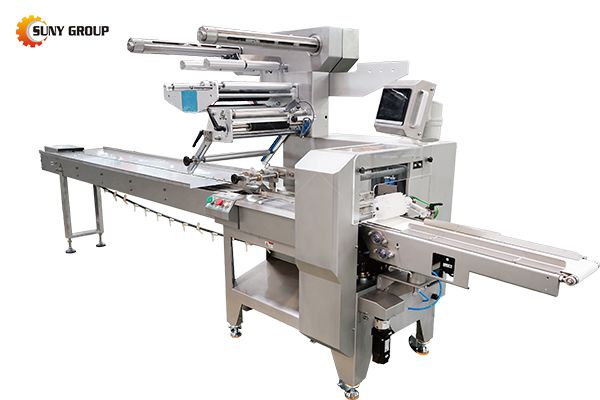

ZY-PZ580 Flow Wrapping Machine
Upper Feeding, Three Servos,Reciprocating,Special for small packaging bags
TECHNICAL PARAMETERS:
| Model | Single Knife | Double Knives | Three Knives |
|---|---|---|---|
| Packing Speed | 30-350 Bags/Min | 30-350 Bags/Min | 30-500 Bags/Min |
| Film Width | 90-400mm | ||
| Bag Length | 60-350mm | 60-350mm | 45-100mm |
| Bag Width | 35-160mm | 35-160mm | 35-60mm |
| Bag Height | 5-60mm | 5-65mm | 5-30mm |
ZY-PZ280 Flow Wrapping Machine
Upper Feeding, Three Servos,Reciprocating,Special for small packaging bags
TECHNICAL PARAMETERS:
| Model | ZY-PZ280 |
|---|---|
| Packing Speed | 25-120 Bags/Min |
| Film Width | 200-600mm |
| Bag Length | 120-500mm |
| Bag Width | 200mmmm |
| Bag Height | 80-110mm |

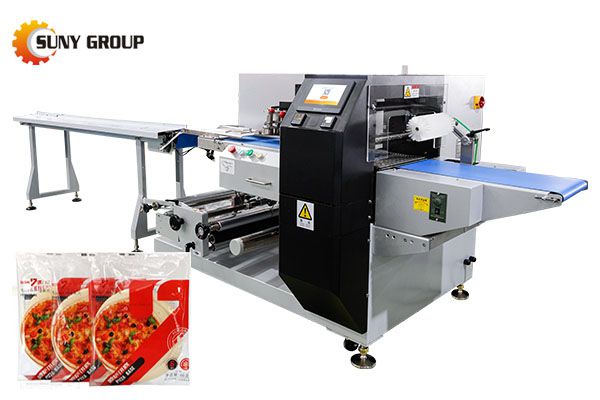

ZY-PZ280XW Flow Wrapping Machine
Upper Feeding, Three Servos, Reciprocating,Special for large packaging bags
TECHNICAL PARAMETERS:
| Model | ZY-PZ280XW |
|---|---|
| Film size | 200-600mm |
| Packing speed | 25-100bags/min |
| Package length | 120-500mm |
| Package width | 250mm(maximum) |
| Package height | 150mm(maximum) |

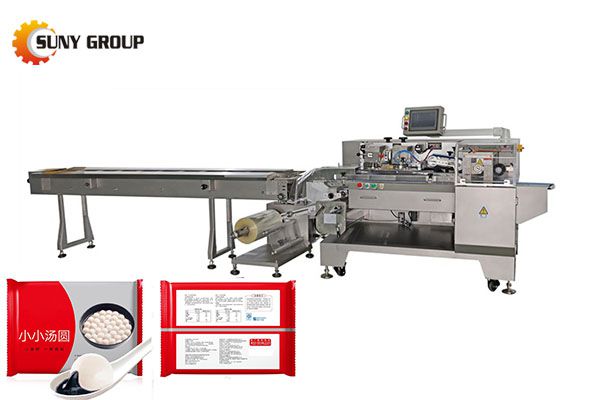

ZY-PZ601 Flow Wrapping Machine
Upper Feeding, Eight Servos, Special for large packaging bags
TECHNICAL PARAMETERS:
| Model | ZY-PZ601 |
|---|---|
| Packing Speed | 25-120bags/min |
| Film Width | 600mm |
| Bag Length | 120-600 mm |
| Bag Width | 250mm(maximum) |
| Bag Height | 120mm(maximum) |
ZY-PZ601W Flow Wrapping Machine
Upper Feeding, Nine Servos, Special for big packaging bags and medium bag packaging.
TECHNICAL PARAMETERS:
| Model | ZY-PZ601W |
|---|---|
| Packing Speed | 10-80Bags/Min |
| Film Size | 600mm |
| Bag Length | 200-600mm |
| Bag Width | ≤250mm |
| Bag High | ≤120mm |

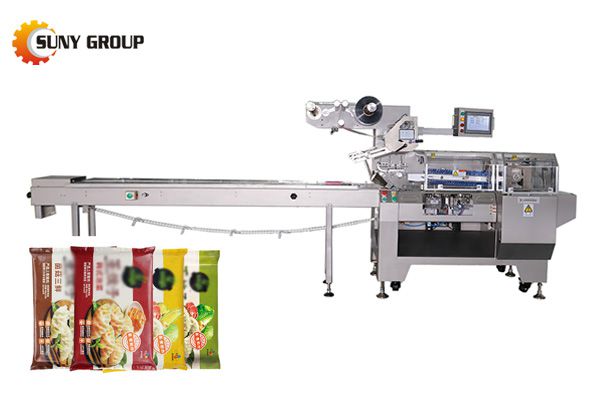

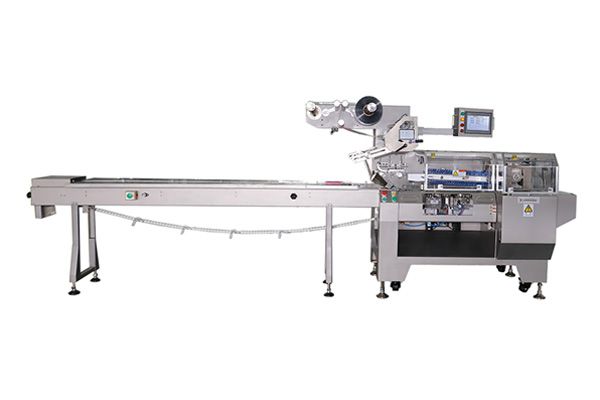

ZY-PZ602 Flow Wrapping Machine
Upper Feeding, Seven Servos, Special for big packaging bags and medium bag packaging.
TECHNICAL PARAMETERS:
| Model | ZY-PZ602 |
|---|---|
| Packing Speed | 25-120Bags/Min |
| Film Size | ≤600mm |
| Bag Length | 200-600mm |
| Bag Width | ≤250mm |
| Bag High | ≤120mm |
ZY-PZ602W Flow Wrapping Machine
Bottom Feeding, eight servos, packaging all kinds of large-sized and large-sized products.
TECHNICAL PARAMETERS:
| Model | ZY-PZ602W |
|---|---|
| Packing Speed | 20-80 Bags/Min |
| Film size | 600mm |
| Bag Length | 120-600mm |
| Bag Width | 250mm |
| Bag Height | 120mm |
ZY-PZ801W Flow Wrapping Machine
Lower film feeding, seven servos, packaging all kinds of large and large products.
TECHNICAL PARAMETERS:
| Model | ZY-PZ801W |
|---|---|
| Packing Speed | 20-70 Bags/Min |
| Film size | 900mm |
| Bag Length | 150-600mm |
| Bag Width | 350mm |
| Bag Height | 140mm |
TELL US WHAT YOU NEED TO PACK
We will recommend the most suitable model for you. If the existing model cannot meet the requirements, we will provide you with professional solutions.
