PACKING MACHINE

ZY-PZ100 Small Packaging Bag Flow Wrapping Machine

ZY-PZ100 horizontal flow wrapping machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.
Model: ZY-PZ100

Upper Feeding, Three Servos, Special for small packaging bags

  • Packing Speed: 30-250bags/min
  • Film Width: 90-220mm
  • Bag Length: 60-200
  • Bag Width: 35-80
  • Product Height: 5-35

NOTE: The above are the default model specifications of the double-knife structure.

Request A Quote Now

SEND EMAIL: groupsuny@gmail.com
PHOTOS OF ZY-PZ100 FLOW WRAPPING MACHINE

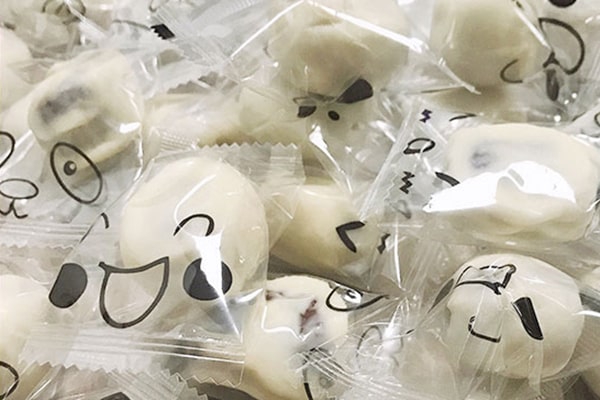

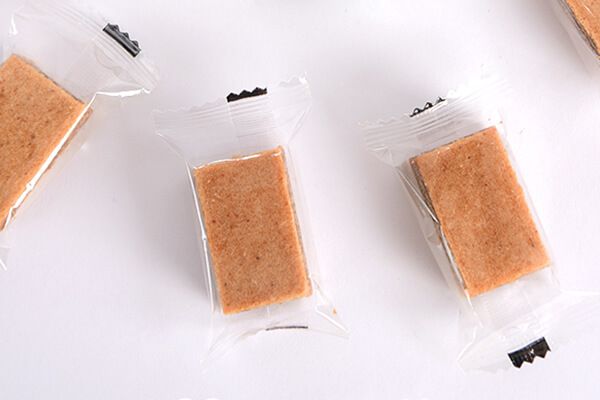

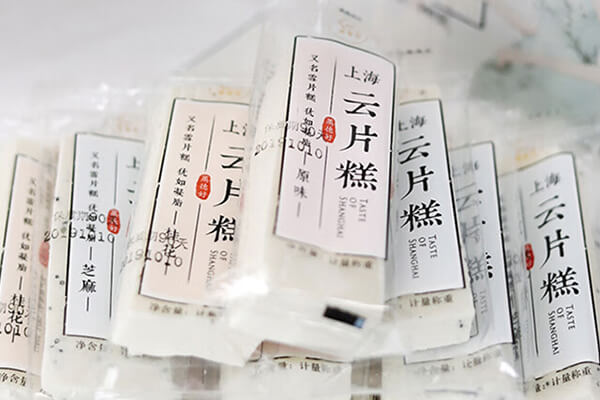

This model is our basic model, mainly for small packaging such as candy, biscuits, chocolate, etc.

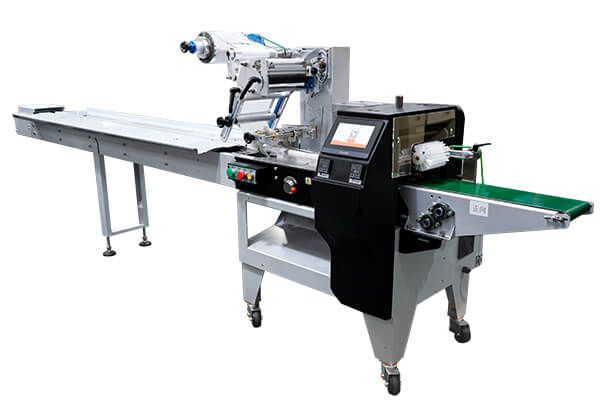

ZY-PZ100 Flow Wrapping Machine
  • Compact machine structure with smaller footprint area.
  • Carbon steel or stainless steel machine frame with nice appearance.
  • Optimized component design realizing fast and stable packing speed.
  • Servo control system with higher accuracy and flexibility mechanical motion.
  • Different optional configurations and functions meeting different specific requirements.
  • High accuracy of color mark tracking function.
  • Easy to use HMI with memory function.
MORE DETAILS
APPLICATION

Mainly used for the packaging of various regular solid products such as biscuits, candies, chocolates, hardware, etc.

SYSTEM COMPOSITION

The packaging machine is composed of conveying device, feeding rack, bag forming device, sealing knife, etc. The whole process is completed automatically without manual participation, and the production speed can reach more than 250 bags/min.

ZY-PZ100 Conveyor Device
Conveyor Device
ZY-PZ100 Upper Feeding System
Upper Feeding System
ZY-PZ100 Color Code Scanning Device
Color Code Scanning Device
Lengthway Sealing
ZY-PZ100 Horizontal Sealing
Horizontal Sealing
ZY-PZ100 Delivery Machianism
Delivery Machianism
ZY-PZ100 Start Up Button
Start Up Button
ZY-PZ100 Membrane Change Handle
Membrane Change Handle
TECHNICAL PARAMETERS
Model Single Knife Double Knives Three Knives
Packing Speed 30-150 Bags/Min 30-250 Bags/Min 30-450 Bags/Min
Film Width 90-220mm
Bag Length 120-300mm 60-200mm 45-120mm
Bag Width 35-80mm 35-80mm 35-70mm
Bag Height 5-35mm 5-35mm 5-30mm
Power 3.1 Kw 220V 50Hz 3.8 Kw 220V 50Hz 4.5 Kw 220V 50Hz
Weight 360 Kg
Dimension L1730×W930×H1370mm
L1730×W930×H1700mm(Automatic Film Connection)
L4000×W930×H1360mm(Including Tailstock)
Film Material PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+Composite CPP, etc.

NOTE: Voltage can be customized according to customer need.

TELL US WHAT YOU NEED TO PACK

We will recommend the most suitable model for you. If the existing model cannot meet the requirements, we will provide you with professional solutions.
