PACKING MACHINE

ZY-PZ280XW Flow Packaging Machine

ZY-PZ280XW horizontal flow wrapping machine mainly used for packing various regular and solid products such as biscuit, moon-cake,bread, instant noodle, confectionery, medicine,daily necessities, hardware, electronics, and any product with tray.
Model: ZY-PZ280XW

Upper Feeding, Three Servos, Reciprocating,Special for large packaging bags

  • Packing Speed: 25-120bags/min
  • Film Width: 200-600mm
  • Package Length: 120-500mm
  • Package Width: 250mm
  • Product Height: 80-110mm

NOTE: The above are the default model specifications for the reciprocating structure.

Request A Quote Now

SEND EMAIL: groupsuny@gmail.com

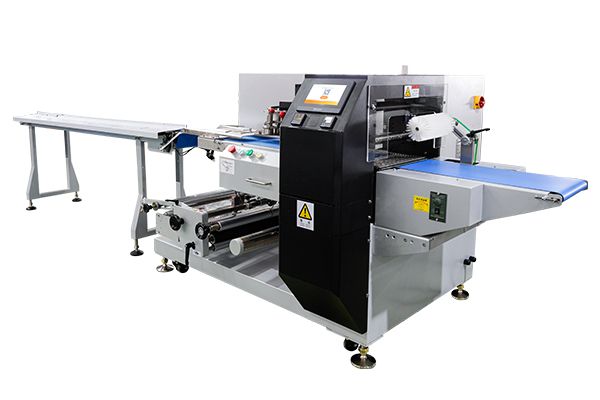

PHOTOS OF ZY-PZ280XW FLOW WRAPPING MACHINE

This model is our reciprocating model, mainly for cannabis flowers, dumplings, towels and other packaging.

ZY-PZ280XW Flow Packing Machine
  • The whoIe machine is controIIed by three servos.
  • Lower film feeding, reciprocating knife sealing mechanism.
  • Automatically adjust the bag length without manual setting.
  • The machine has higher precision, sealing and cutting position is accurate.
  • Servo control system with higher accuracy and flexibility mechanical motion.
  • High accuracy of color mark tracking function.
  • Easy to use HMI with memory function.
MORE DETAILS
APPLICATION

Mainly used for the packaging of single or multiple irregular baked foods, quick-frozen products,multi packet combination and other large-scale products.

SYSTEM COMPOSITION

The packaging machine is composed of conveying device, feeding rack, bag forming device, sealing knife, etc. The whole process is completed automatically without manual participation, and the production speed can reach more than 120 bags/min.

ZY-PZ100 Conveyor Device
Conveyor Device
ZY-PZ100 Upper Feeding System
Upper Feeding System
ZY-PZ100 Color Code Scanning Device
Color Code Scanning Device
Lengthway Sealing
ZY-PZ100 Horizontal Sealing
Horizontal Sealing
ZY-PZ100 Delivery Machianism
Delivery Machianism
ZY-PZ100 Start Up Button
Start Up Button
ZY-PZ100 Membrane Change Handle
Membrane Change Handle
TECHNICAL PARAMETERS
Model ZY-PZ280XW
Film size 200-600mm
Packing speed 25-100bags/min
Package length 120-500mm
Package width 250mm(maximum)
Package height 150mm(maximum)
Center distance 120-160mm
Packaging film type OPP,PVC,PE,OPP/CPP,PT/PE,KOP/CPP etc
Power 4.7 Kw 220V 50HZ
Weight 675Kg
Dimension L4240*W1249*H1160 mm

NOTE: Voltage can be customized according to customer need.

TELL US WHAT YOU NEED TO PACK

We will recommend the most suitable model for you. If the existing model cannot meet the requirements, we will provide you with professional solutions.
