Bottom Feeding, Three Servos, Special for for packing various kinds of irregular or sticky products.
- Packing Speed: 35-160bags/min
- Film Width: 90-400mm
- Bag Length: 60-500mm
- Bag Width: 35-160mm
- Product Height: 5-60mm
NOTE: The above are the default model specifications of the single-knife structure.
SEND EMAIL: groupsuny@gmail.com

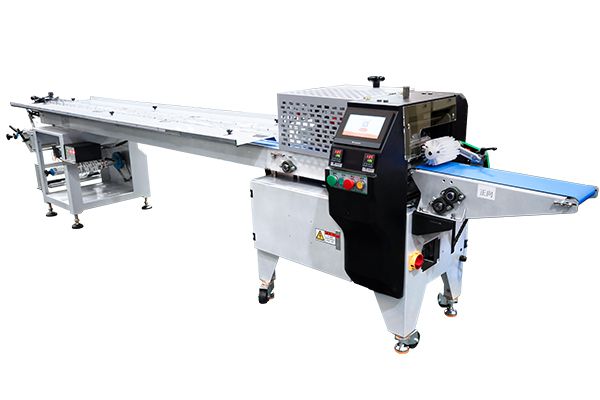

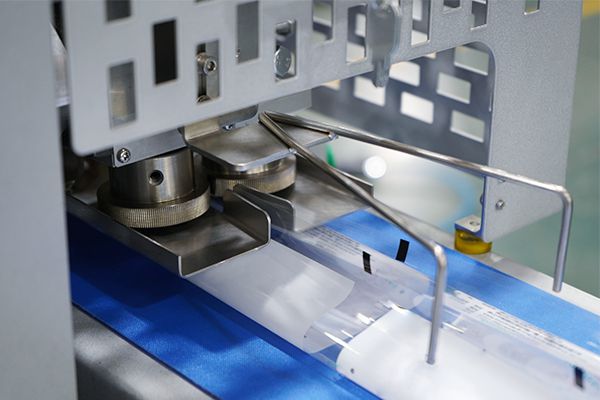

ZY-PZ3000 flow wrap machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.
- Compact machine structure with smaller footprint area.
- Carbon steel or stainless steel machine frame with nice appearance.
- Optimized component design realizing fast and stable packing speed.
- Servo control system with higher accuracy and flexibility mechanical motion.
- Different optional configurations and functions meeting different specific requirements.
- High accuracy of color mark tracking function.

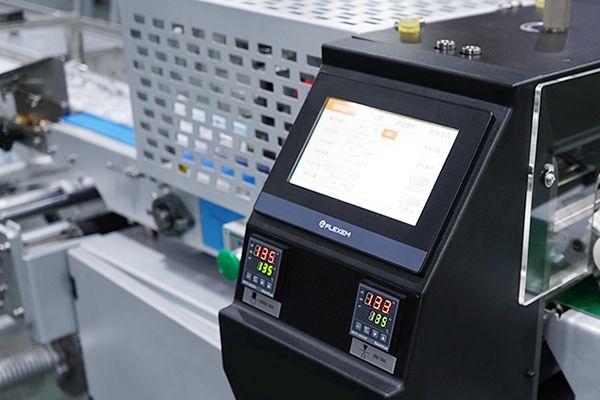

- Easy to use HMI with memory function.

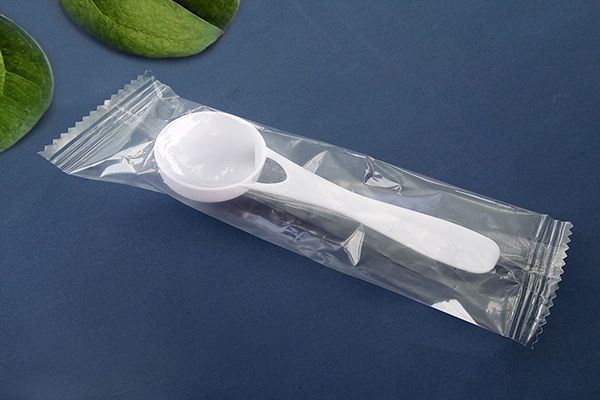

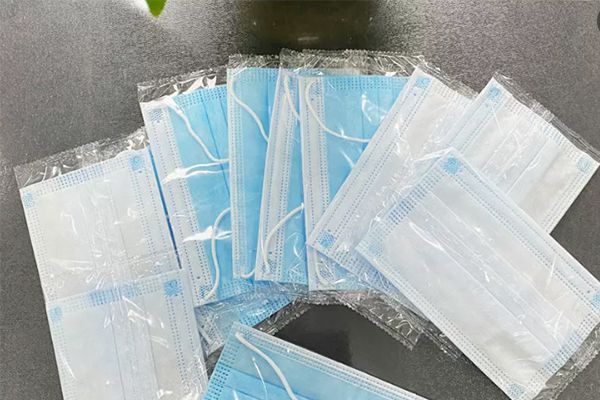

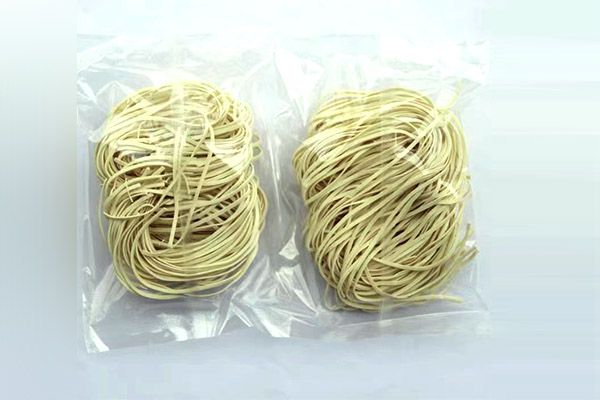

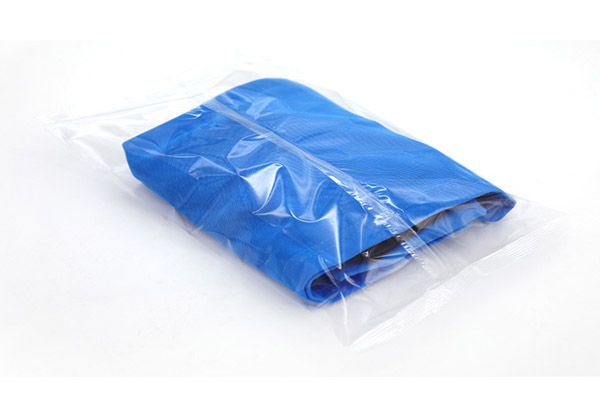

Mainly used for packing various kinds of irregular or sticky products, such as mask, dry noodles, underpants, egg roll, sausage, squid, bread, preserved fruit, jelly candy, toilet soap, tableware, sticky tape, medicines and so on.

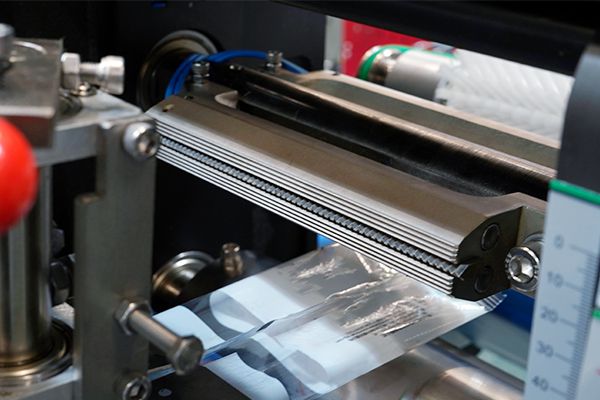

The packaging machine is composed of conveying device, bottom feeding rack, bag forming device, sealing knife, etc. Bag length can be set from 60mm to 500mm via color mark tracking or bag length presetting. To set bag length is much easier and flexible. The whole process is completed automatically without manual participation, and the production speed can reach more than 120 bags/min.
| Model | Single Knife | Double Knives | Three Knives |
|---|---|---|---|
| Packing Speed | 35-160 Bags/Min | 35-250 Bags/Min | 35-450 Bags/Min |
| Film Width | 90-400mm | ||
| Bag Length | 60-500mm | 60-300mm | 45-100mm |
| Bag Width | 35-160mm | 35-160mm | 35-60mm |
| Bag Height | 5-60mm | 5-60mm | 5-30mm |
| Power | 3.1 Kw 220V 50Hz | 3.8 Kw 220V 50Hz | 4.5Kw 220V 50Hz |
| Weight | 350 Kg | ||
| Dimension | 1890*750*1075 | 2630*750*1075 | 4800*750*1075 |
| Film Material | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+Composite CPP, etc. | ||
NOTE: The default configuration of the ZY-PZ3000 model is 132 center distance for the cutter sealing mechanism, and 90 center distance for the material with bag length less than 105mm.
