Model: ZY-GD100, ZY-GD80F, ZY-GD80K
Three Full Servo, High Speed, Food Grade Material
- Packing Speed: 60-82bags/min
- Package Length: ≤400mm
- Package Width: ≤300
- Air consumption: 5-7kg/cm² 500L/min
NOTE: The above are the default model specifications for the reciprocating structure.
SEND EMAIL: groupsuny@gmail.com

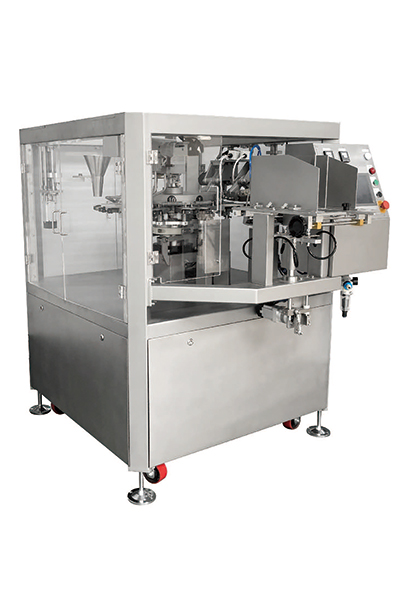

FEATURES OF ZY-PZ100 FLOW WRAPPING MACHINE
Mainly consists of premade pouch packaging machine with weighing, lifter and working platform.
- The whole machine can choose eight-station or ten-station structure
- PLC control, simple and convenient operation
- Supporting fault automatic tracking alarm system
- Supporting empty bag tracking monitoring device
- Adopt full servo control system, reliable, fast and accurate
- Adopt 304 stainless steel as the body, the design is easy to clean
BAG STYLE:
8 side stand up bag
Stand up zipper bag
Doypack Pouch
SYSTEM COMPOSITION
Premade pouch packing machine replaces the manual packaging, the equipment robot will automatically pick up the bag, print the date, open the bag, give the metering device signal metering and drop, sealing, output.

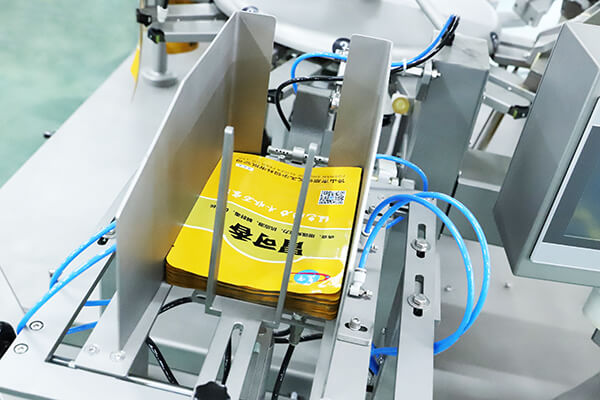

Pick Up Bag

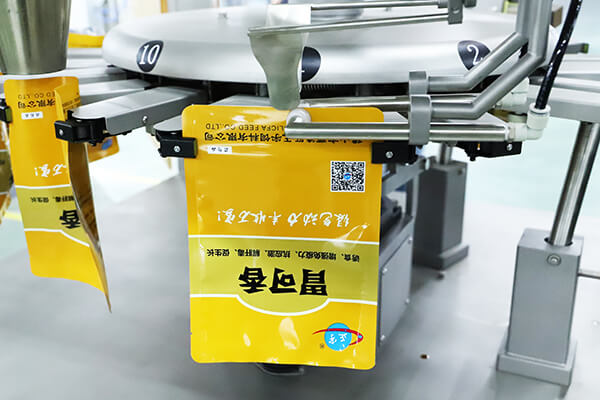

Open Bag

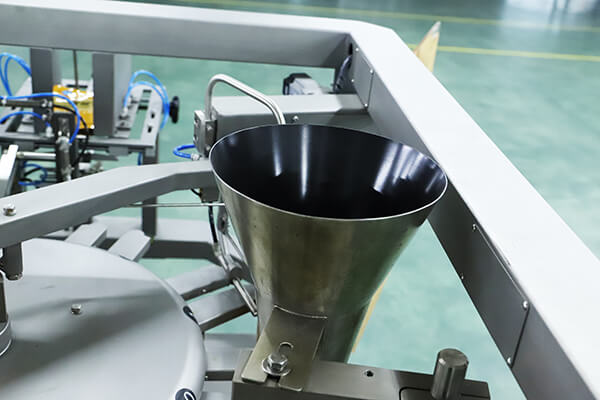

Put In Items

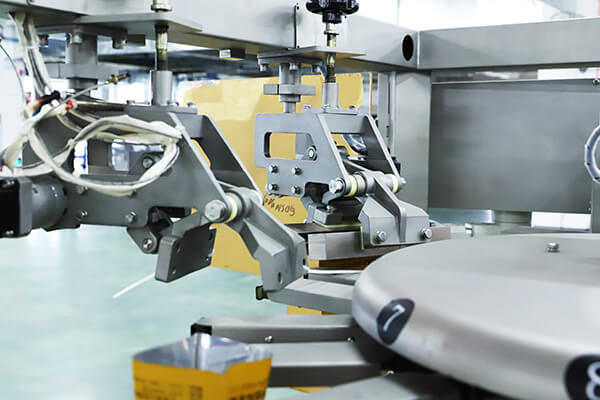

Sealing
TECHNICAL PARAMETERS
| Model | ZY-GD100 | ZY-GD80F | ZY-GD80K |
|---|---|---|---|
| Number of Stations | 10 | 8 | 8 |
| Packing Speed | 82 Bags/Min | 70 Bags/Min | 60 Bags/Min |
| Bag Length | ≤360mm | ≤400mm | ≤400mm |
| Bag Width | 90-210mm | 130-250mm | 160-300mm |
| Power | 1 PH 220V, 50Hz, 3.5Kw | ||
| Packing Formart | Bags (flat bag, stand bag, zipper bag, hand bag, M bag etc irregular bags) | ||
| Air consumption | 5-7kg/cm² 500L/min | Dimension | L1950×W1400×H1520mm | L1950×W1400×H1520mm | L2100×W1500×H1520mm |
| Packing Material | Single layer PE, PE complex film etc. | ||
NOTE: Voltage can be customized according to customer need.
