Down Feeding, Nine Servos, Special for big packaging bags and medium bag packaging.
- Packing Speed: 10-80bags/min
- Film Width: Max. 600mm
- Bag Length: 120-600mm
- Bag Width: 250mm
- Product Height: ≤120mm
NOTE: The above are the default model specifications of the double-knife structure.
SEND EMAIL: groupsuny@gmail.com

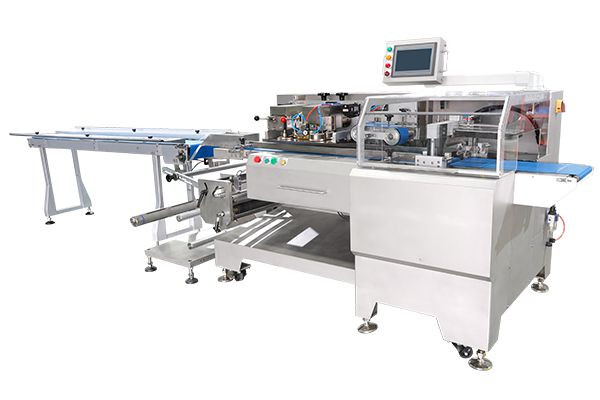

ZY-PZ601W horizontal flow wrap machine is ideal for suppliers of products that must be packaged individually.
- Reasonable machine configuration and streamline appearance design with low noise, less trouble and easy maintenance.
- Automatic stop function without product can avoid wasting packing film.
- Fully automatic material-feeding function saves manpower.
- It can be equipped with some kinds of automatic material feeding devices. And it has a strong extensible function.
- The whole machine is applied with multiple safety protection devices.
- Various cutting types are available for option.
Mainly used for packing various kinds of irregular,sticky or bulky products, such as egg roll, sausage,squid, bread, instant noodles, preserved fruit, jellycandy, toilet soap, pocket notebook, stick tape,medicine, and so on.
ZY-PZ601W Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.
| Model | ZY-PZ601W | ||
|---|---|---|---|
| Center Distance | 120/160mm | ||
| Packing Speed | 10-80Bags/Min | ||
| Film Size | 600mm | ||
| Bag Length | 200-600mm | ||
| Bag Width | ≤250mm | ||
| Bag High | ≤120mm | ||
| Power | 9Kw 220V 50Hz | ||
| Weight | 2000 Kg | ||
| Dimension | 4000*930*1370mm | ||
| Film Material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP,etc. | ||
NOTE: Voltage can be customized according to customer need.
